This blog section is about my 23 day project to build an Android game from scratch.
To read more recent posts, go to blog starting page.

Day 23: Release!

My game is ready and available for download on Google Play:

https://play.google.com/store/apps/details?id=com.bigosaur.backyardpanic

Please try it out, let me know if you find any bugs. The game is free, but if you like it, please tell your friends to try it and rate it in the Google Play. Hopefully, someone would like it enough to buy some in-game coins and I'll complete the $1 challenge :)

Even if you're not going to buy anything, please tweet about the game to your followers on Twitter. Thanks.

Feedback & Share Milan Babuškov, 2013-10-22

Day 22: Sound effects

Although I have a wast library of wav sfx files I accumulated over the years, I've seen other game devs use Bfxr to create their own effects, so I decided to give it a try.

This is nice, because you own the effect 100% and you don't need to prove where did you get the audio file. Some of the sites I used to download my sfx in the past are no longer online, and tracking people who made those is impossible. For example, my favorite mod music is Aspirating Milk which I found on modarchive. I tried to contact the author via e-mail in the tracker file, but got no reply. It was probably his address at university or something.

Bfxr requires Windows or Mac, while I prefer doing my development on Linux. I thought about running it on Wine, but didn't even bother to try because I found this:

http://www.superflashbros.net/as3sfxr/

It's a super easy to use and simple Flash app you can run in your browser. I highly recommend it.

These sfx programs produce various simple sound effects. Some complex sound effect can be created by mixing a couple of simple effects in a program like Audacity. I used it to create sfx for Atomic Bomb powerup:

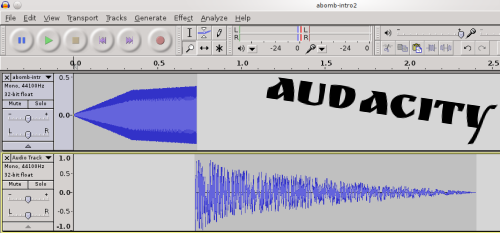

Mixing sound effects from as3sfxr in Audacity

BTW, I basically completed the game, I'm now testing on various Android devices. I'll probably do the release on Google Play store tomorrow.

Feedback & Share Milan Babuškov, 2013-10-21

Day 21: Monetization of Android game

I'm making this game as an experiment, so I don't expect to earn much money. This game is going to be free to play, with option to buy coins in the game if you want. I like the way it's done in games like Pudding Monsters where players can play everything without paying at all. Drone Invaders will be completely playable without paying a dime, so it is not a kind of "pay to win" types. However, I still want to enable players who can't wait to have fully powered up weapons right away.

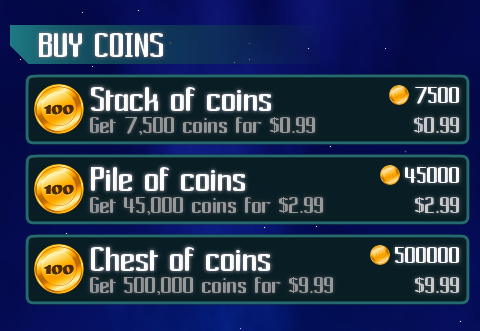

Buy coins for Android game

I opened the Google Play account without problems. It was $25, which is fine. I just read some blog post where a solution to saturation of Google Play was suggested - it proposed to have $5000 registration fee, so only developers who are serious would apply. I'm not sure if I would apply for $5000, it seems so me that only big studios who are already making money on other platforms would participate.

However, opening a Google Merchant Account is mission impossible from my country. So, what are the options. Well, you can still add payments with services like Fortumo or Centili, but this has two problems: 1. it goes against Google Play terms of use, so you either risk getting your account suspended or you only publish to other Android app stores (there are some 30+ as far as I can tell, and some stats say they make up about 30% of the market, although this seems too high to me). 2. to enable payment via SMS, your game needs to ask for two system permissions which users probably won't like: send and receive SMS. Although this is the only way to enable monetization in some countries, if you aim for US market, it's a bad idea.

Third option is to start a company in USA and register account that way. This is of course the right thing to do if you expect to earn some substantial amount of money from your game, but having an US company brings in some costs. There are specialized agencies that can register you a company in Delaware. Delaware is a USA state and a tax-haven. Of course, you can always tranfer the earned money from there to yourself, and then pay the taxes locally on that transfer. I'm not ready for this step yet, as this is my first game and I have no clue if I will make any money of it.

Luckily, I have a friend who lives in US, so we opened an account under his name, and the game will be released under that account. At least merchant account is available for US individuals. I still don't understand why Google won't allow merchant accounts from my country, when I'm receiving money from their AdSense directly, without any problems. I guess not all departments of Google have the same policy.

Feedback & Share Milan Babuškov, 2013-10-20

Day 20: Weekly challenge. Persistent player data. Java date woes.

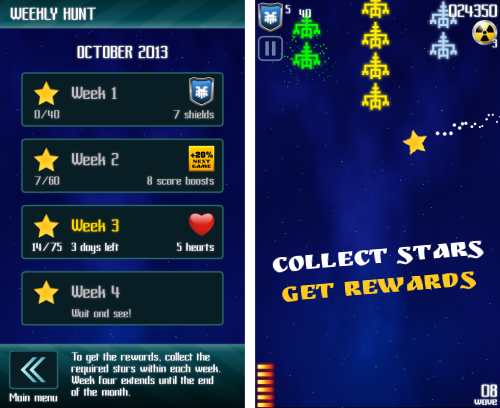

Weekly challenge will be to collect some amount of stars during a week and get some nice reward, like 8 atomic bombs, 5 shields or similar. I made a nice gold star in Gimp. I tried different particle effects on it and also some diffused star-light, but it did not look really good. So I went back to the particle effect used for powerups and tweaked that until I got something distinct for the star. Stars show up on their own pacing, so you can have both a star and a powerup on the screen at the same time.

Weekly Challenge

I also worked on loading and saving player data. It was much easier than I expected. I expected to have to learn some Android data storage API, but for simple key-value storage, libGDX provides the Preferences class. Just init with:

Preferences prefs = Gdx.app.getPreferences("DroneInvaders");

and then use get("key", defaultValute) and set(key, value) to read and write the values.

The only thing I had problems with are the dates. To keep track of daily and weekly challenges, the game stores the date of last play. When player launches the game, it compares that and resets some counters. Theoretically, I could prevent players from changing the system's calendar to past date, but I don't want to. What I am doing, is setting new set of daily and weekly challenges when day rolls over and resetting the counters for number of stars and letters picked up.

To make that work, I had to get the day difference between the previous play and current date. It matters whether it's the same day, exactly one day apart or more than one day. Googling got me to various websites and StackOverflow questions. Answers are funny. Many programmers simply calculate difference in seconds and then divide by 60 * 60 * 24 to get the days, completely ignorant about issues with daylight savings and leap seconds. One could argue that it does not matter that much for a game, but still getting many bug reports twice a year doesn't sound like fun to me. Some other guys simply count the days by adding one-by-one from start until they reach the end. While those loops might look correct, they still miss sometimes as they do not take the time out of the calculation. If one object stored 01.Jan at 5am, and you calculate it vs 02.Jan at 23pm, adding one day to first object is still less than the second, so they add two and get 2 day difference.

One of the tricks I use in this situation is to always set the time of the earlier Date to be something like 10am, and set the time for the later Date object to 5pm. Since daylight changes always happen at night, this is safe. And we also have 7 hours in between, just in case someone in future decides to do daylight saving changes in the middle of the day.

Feedback & Share Milan Babuškov, 2013-10-19

Day 19: Daily Challenge and Missions

Daily challenge is to collect 5 letter which fly like powerups do. Once you collect them all, you get some coins to buy powerups. This is a way to get easy free coins just by playing the game. I was inspired by Subway Surfers when creating this.

Missions are various tasks for player to complete to earn coins. Coins are used to buy upgrades and expendable items like shields, bombs, etc. Missions come in sets of three, and you need to complete all three tasks to earn the reward.

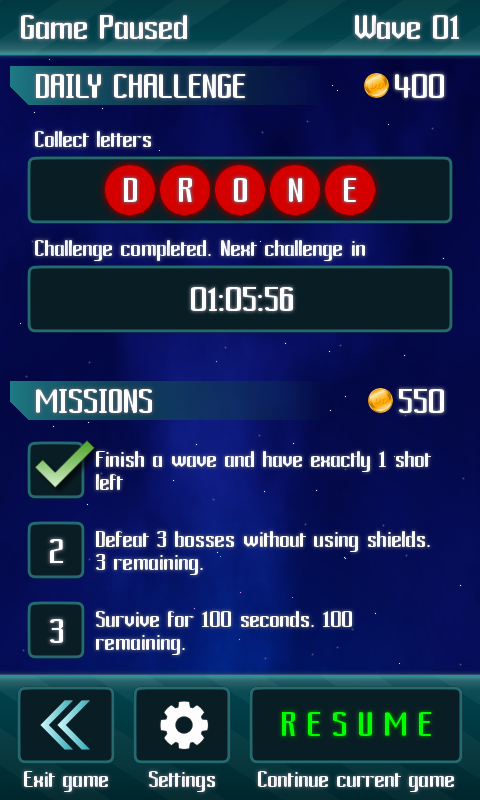

Daily challenge, collect letters

For the missions I figured that it would be easiest to use the builtin multiline text wrapping. However, the line height is too big, and I could'n find a way to reduce it. At least, not from code. Then I edited the .fnt file generated by BMFont and just changed

lineHeight=33

to

lineHeight=23

I added 5 pixels of drop shadow around all letters after the bitmap was generated initially, so I'm now reducing height by ten (5 pixels above, and 5 below the glyph).

While searching the docs for this, I found something else I missed before: Depending on the font you choose for the game, numbers might not look very nice as glyph for digit "one" can we very slim, and numbers like 11 look odd. To solve this, you can fix some of the glyphs in the font to use fixed width:

font.setFixedWidthGlyphs("0123456789");

This looks really good, but I already did some design decisions that used the slim-glyphs "feature", so I'm not going to use this.

Feedback & Share Milan Babuškov, 2013-10-18

Day 18: Sprite collisions with circle shape. Pixel-perfect bullet trajectory.

Today I got fed up with the "moon hit" bug. Sometimes aliens would not get hit even if they are visible on the screen. I set up a bunch of tests with screen filled with aliens and semi-transparent moon to see what's going on. My coordinates for hit-test area were a bit off, but even when I fixed that it was not good. Box simply cannot cover the circled area well. You either miss aliens when you should hit them, or you shoot some that are completely hidden.

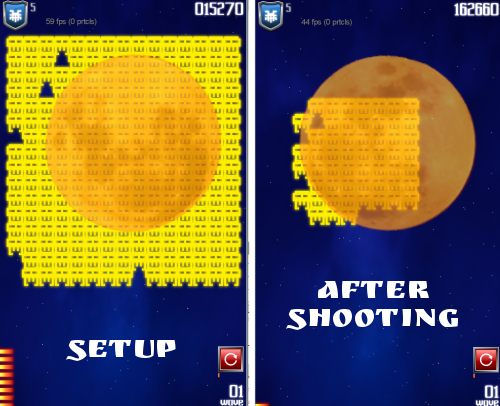

Shooting the moon

So I decided to switch to circle based checks. Since the moon in much larger than aliens, it would be enough to check whether all the 4 points of alien's bounding box are inside the moon's circle or not. To test this visually, I used libGDX builtin ShapeRenderer, like this:

    shapeRenderer.setProjectionMatrix(camera.combined);
    shapeRenderer.begin(ShapeType.Circle);
    shapeRenderer.setColor(1, 1, 1, 1);
    shapeRenderer.circle(sMoon.getX() + 119, sMoon.getY() + 116, 167);
    shapeRenderer.end();

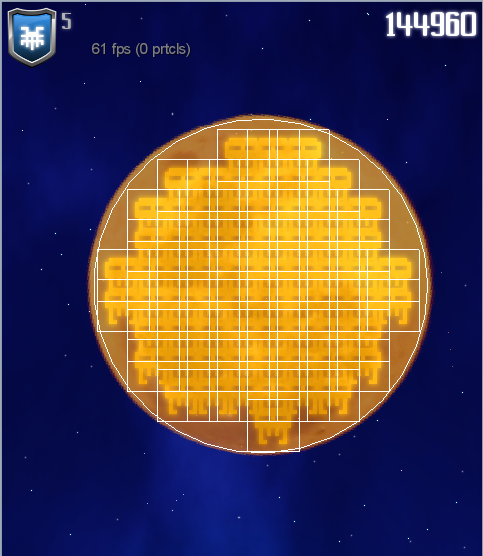

This code comes after SpriteBatch is complete. The white circle is drawn over the scene. I also draw all the bounding boxes of aliens using ShapeType.Box.

An efficient way to test whether point is inside the circle is not to use square root (slow) and just compare sqared distances instead. libGDX builting function Circle.contains(x, y) does that properly, so I'm using that for checks. This works really nice. I extended the radius by a few pixels, because all the sprites have some padding and I'm really satisfied with the result:

After Shooting

Pixel-perfect bullet trajectory

In this game, bullets are fired some 50px below the bottom of the screen. I'm using atan2 function to rotate the bullet and hit the mark, but there were a couple of errors in my code, especially when you miss the target. To understand the rest of this post, please note that the game uses HitScan for all the shots in the game.

When player misses the target, the code extrapolates the trajectory to the end of the screen. Previous code that did this set the end point too far. Since the bullet is using tween engine to fly, this results in large jumps and bullet is only seen in 2-3 positions on the screen before it flies out. I fixed this code to set the end point at the edge of the screen, so now you can actually see the bullet flying.

This revealed another problem: the bullet sprite was sometimes 10-20 pixels off from the point where player touched the screen. There are three causes of this problem. First, I was using X and Y coordinates of the bullet sprite, which is the lower-bottom corner. I fixed this to use the bullet sprite center by adding half of width and height. But it was still off on some shots. Second problem was that I forgot to set the origin, so bullet was rotated around the bottom-left corner. I fixed that as well, but still some shots going to the left side of the screen were bad.

Then I realized that, when bullet rotates, width and height of the sprite changes, so the bullet center needs to be calculated after the rotation. With that fix, the bullet flies right through the point where player touched. The code looks like this:

    // fly the bullet
    LaserBullet lb = new LaserBullet(tUI, 65, 64, 20, 40);
    lb.setPosition(0, -450);
    lb.setOrigin(10, 20);
    lb.setRotation( (float)(Math.atan2(-x, 450f+y) * 180f / Math.PI) );
    Rectangle r = lb.getBoundingRectangle();
    x = (int)(x - r.width * 0.5f);
    y = (int)(y - r.height * 0.5f);
    lb.target.set(x, y);
    bullets.add(lb);
    Tween.to(lb, SpriteTweenAccessor.POSITION_XY, delay)
        .target(x, y).start(tweenManager);
Feedback & Share Milan Babuškov, 2013-10-17

Day 17: Android icons. Powerups completed.

I like that Android allows (even recommends) that icons are not rounded rectangle. It can give your game some style. At first I thought about creating a special icon for the game, but I really, really like this shield with pixelated alien drone on it. And I have made this in Inkscape, so I can create any size I want (unlike some other graphics I created in Gimp). I'm presenting you the official Drone Invaders icon:

Drone Invaders Icon

Powerups galore

Here's a video showing all the collectible powerups:

There's Atomic Bomb. I'm not sure about the name, maybe Nuke or Plutonium Bomb or Smart Bomb or something completely different. It damages everything on the screen. Bosses survive one or two, but 3 bombs destroy them too. Internally, each boss has 20 energy and bomb has 8 damage. Regular shot is 1 damage, until you upgrade lasers.

Second, there's 3-Way Shooting. You still lose one round of bullets for each 3-shot. This is a very powerful powerup as you can clean up waves and bosses just like that.

Third, there's Auto-Reload. As the name says, your lasers reload automatically, so you're free to shoot, shoot, shoot and shoot.

Fourth, there's Slowdown. It only slows down aliens, everything else moves normally. It's quite useless on first 20 waves, but gets really, really useful later.

Fifth, there's Double-Score. While this powerup lasts, all the points you earn are doubled. I'm still not sure if something will be awared for some point treshold, but it's still cool to beat the hiscore.

Feedback & Share Milan Babuškov, 2013-10-16

Day 16: Recording a movie from libGDX game

I thought about posting a YouTube video of the gameplay. I used recordmydesktop program to record videos in the past, but the problem is that libGDX and rmd do not sync so I get a lot of artifacts on the screen, sprites are cut in half, etc. I searched and found some useful articles about it. Basically, one would record each frame to a PNG file and then create a video out of it. Of course, this requires a lot of disk space, but that's not an issue. I found this page really helpful:

http://www.wendytech.de/2012/07/opengl-screen-capture-in-real-time/

However, their code has some weak points. For some reason, when I overlay background with sprites with semi-transparent pixels, the resulting PNG file has semi-transparent pixels in that area. Producing a video from it yields some really ugly artifacts. I tried different settings, even changed my render code, but the problem remained. Now, a simple post-processing step using ImageMagick (adding black background) fixes the problem, so I figured if I'm going to post-process it anyway, I might do the vertical flip in ImageMagick as well. So I turned off the y-flip in the code. This makes it more efficient: there is no need to allocate w*h*4 bytes of memory on each frame. On 800x480 screen, that's about 1.5MB allocate on each frame!

Also, the code that deals with framerate (skipping frames) is really sub-optimal. It skips the file numbers, which is not a big deal, but it also creates a new ScreenShot object each frame, which is completely not needed. For example, if you are recording at 30fps and game runs at 60fps, you're creating new object 50% of the time.

Finally, the code seems to forget to dispose of pixmap, so if you run it for a really long time, if would eat all your RAM.

So, I yanked out the whole FPS code out of ScreenShot class, and leave that to the class that sets up countinous screenshots instead. I also noted that some of the variables are initialized but never used. My ScreenShot class is much simpler and straightforward:

public class ScreenShot implements Runnable
{
    private static int fileCounter = 0;
    private Pixmap pixmap;

    @Override
    public void run()
    {
        saveScreenshot();
    }

    public void prepare()
    {
        getScreenshot(0, 0, Gdx.graphics.getWidth(), Gdx.graphics.getHeight(), false);
    }

    public void saveScreenshot()
    {
        FileHandle file = new FileHandle("/tmp/shot_"+ String.format("%06d",  fileCounter++) + ".png");
        PixmapIO.writePNG(file, pixmap);
        pixmap.dispose();
    }

    public void getScreenshot(int x, int y, int w, int h, boolean flipY)
    {
        Gdx.gl.glPixelStorei(GL10.GL_PACK_ALIGNMENT, 1);
        pixmap = new Pixmap(w, h, Pixmap.Format.RGBA8888);
        Gdx.gl.glReadPixels(x, y, w, h, GL10.GL_RGBA, GL10.GL_UNSIGNED_BYTE, pixmap.getPixels());
    }
}

Yep, that's all. In render loop I use this at and of each render:

ScreenShot worker = new ScreenShot();
worker.prepare();			// grab screenshot
executor.execute(worker);	// delayed save in other thread

For completeness, executor added to my Screen subclass:

private ExecutorService executor;
...
executor = Executors.newFixedThreadPool(25);

Now, on my Core2Duo it has a hard time keeping up frame rate. On one hand, it's good, because gameplay slows down and I'm able to play a nice, partly scripted video. On the other hand, it would be nicer to just record and later cut out what you need. So I added a hotkey for screenshots. It only records shots while S is pressed on the keyboard. When you record a few interesting seconds, just release S and let the PNG writer catch up. When it does, and CPU load goes back to normal, you can record again.

Videos created like this are super easy to edit. Just remove the unneeded PNG files and compress video without them. It's also easy to sync with music, because you can add/remove frames at will.

Turning screenshots into YouTube video

Since Android screen I'm using by default is 480x800 pixels, the closest fit is YouTube's 1280x720 format. We need to scale the image to 432x720 to maintain aspect ratio. This leaves us with a lot of unused area. You can put your logo there, or even show 2 videos running side-by-side ;) I decided to put the video inside another rectangle, that resembles a handheld device, so it's even smaller, it's 372x620.

Anyway, I created a 1280x720 static image with my logo and now I'm blending the gameplay into it, and also flipping it vertically. On Linux, I'm using a command like this:

for i in shot*png; do echo $i; convert $i -flip -filter Lanczos -resize 372x620 temp1.png; composite temp1.png back.png -geometry +126+56 $i; done

Once all the images are ready, we can run mencoder to produce the video. YouTube recommends using H.264 format and bitrate up to 5000 for 720p videos. They also recommend two B-frames. Here's my command:

mencoder mf://shot*.png -mf w=1080:h=720:fps=25:type=png -ovc x264 -audiofile music.mp3 -oac copy -o movie.avi -x264encopts bitrate=5000:bframes=2:subq=6:frameref=3:pass=1:nr=2000

This yields a solid quality YT video of your gameplay. You can see the result at the start of this post. As for the audio, I just slapped over the game's soundtrack. I'm not capturing the audio of the actual game.

Feedback & Share Milan Babuškov, 2013-10-15

Day 15: Android Back button, Main menu screen, fixed bug with coordinates

Remember that problem from Day 11 about screen coordinates and mouse clicks missing the aliens? Well, it was all my fault. Good thing I discovered it now and not when the game got downloaded by a bunch of Android users not using 800x480 screens. I was naive and translated the touch coordinates to world coordinates like this:

float x = Gdx.input.getX() - 240f;
float y = 400 - Gdx.input.getY();

That's not the way to do it. The proper and easiest way is to ask Gdx to translate it for you:

Vector3 touchPos;
touchPos.set(Gdx.input.getX(), Gdx.input.getY(), 0);
camera.unproject(touchPos);

Handling Back button on Android

Most examples on the net about handling Back button talk about overriding keyDown method. Unfortunately, this requires that you use the Stage, which I do not. I understand now that I'm replicating a lot of Actor and Stage stuff in my own code, but nevermind. I'll use the Stage for the next project.

Luckily, I found the solution. Just add this to your Game subclass in create() function:

Gdx.input.setCatchBackKey(true);

And then in render(), check if it's pressed:

if (Gdx.input.isKeyPressed(Keys.BACK))
{
    Gdx.app.exit();
}

Now, watch out, you probably want a boolean flag variable to detect when it is released, as render() calls go many times per second.

if (backReleased && Gdx.input.isKeyPressed(Keys.BACK))
{
    backReleased = false;
    Gdx.app.exit();
}
else
{
    backReleased = true;
}

Now you can enter the game, the shop menu and go back to main menu. Of course, menus just display items, but none of it works yet.

Use 9-patch for dynamic sized buttons and boxes

I also learned how to use NinePatch to create nice buttons. One moment I realized I'd have to draw like 10 sizes of various option buttons, that basically look the same, only with different content inside. I even looked at Gdx buttons, but decided I still use the DIY approach. Buttons in my game have special needs, some of them combine 2 images and 4 text labels with 2 different fonts, all inside a single button.

Anyway, I have drawn a small 46x46 9-patch that covers all button sizes and I'm drawing other stuff over that with some custom code. I used the constructor with TextureRegion to extract the 9-patch graphics from my large texture that contains everything else. One less texture switch.

Creating this allowed me to populate main menu screen with various options, and I also added a scrolling marquee giving some tips about the gameplay. I really like that concept, but games rarely use it. Some games display just one tip at start. Maybe they do not want to distract players with scroll in main menu.

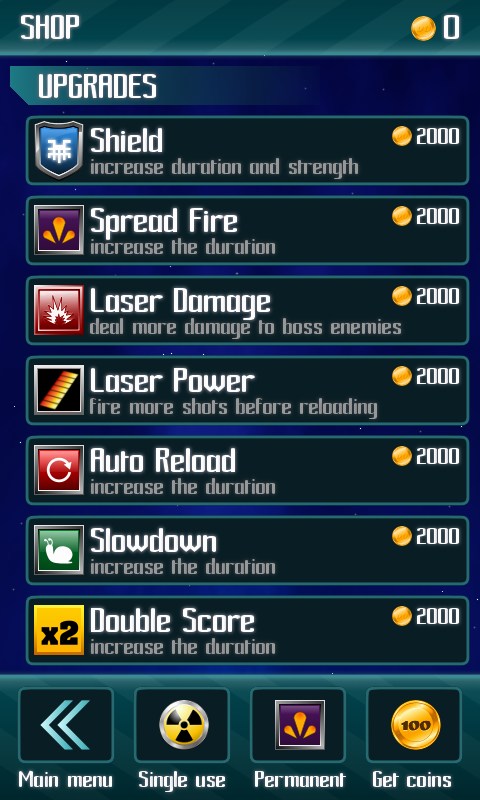

And here's the shop menu to buy some powerups:

Buy powerups

Powerups

Here are some new ideas for powerups. One can be temporary slowdown of aliens. Another one would be 5x score for a limited time. I'm thinking to eliminate the "double score" improvement which was to be available in the shop. Some players might be really competitive about the hiscore, so this is probably a bad idea.

On the other hand, a powerup to increase number of shots before reloading would probably be welcome by everyone, so I'm adding that.

I was hoping to keep the shop at 7 items tops, so that it all fits a single screen. But now I'm not sure with all the possible upgrades... we'll see.

Feedback & Share Milan Babuškov, 2013-10-14

Day 14: Completed all basic alien graphics

All 7 basic alien types are complete, I just finished Catcher, while Humaniod and Scorpio was done yesterday evening. I also created some basic graphics for the shop, where you can buy upgrades.

Alien types in Drone Invaders

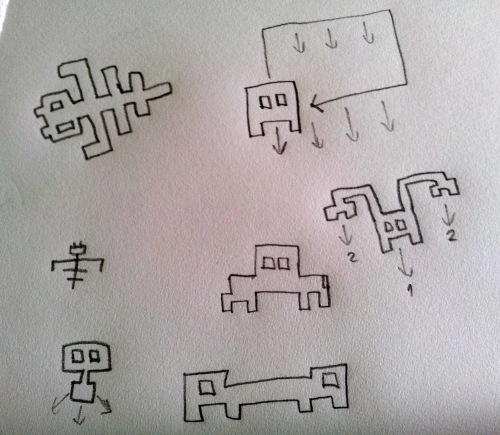

I got some new ideas for boss aliens. One of them is a snake-like alien, and you body is composed of multiple parts, which you need to destroy separately.

The second one is alien boss creating alien bosses. Basically, if you don't destroy it on time, it will create another boss. This second boss spits regular aliens and moves downwards (to free the space for the next one).

Third boss is a special creature, able to multiply by division. When you shoot it, you get two identical aliens, each having half energy of the parent one. This division happens until you split them into 1-energy ones and shoot those.

Fourth boss is... well, let's leave some surprizes for when you play the game. I'm sure fourth boss will be very annoying to some players, until they figure out how it's behaving.

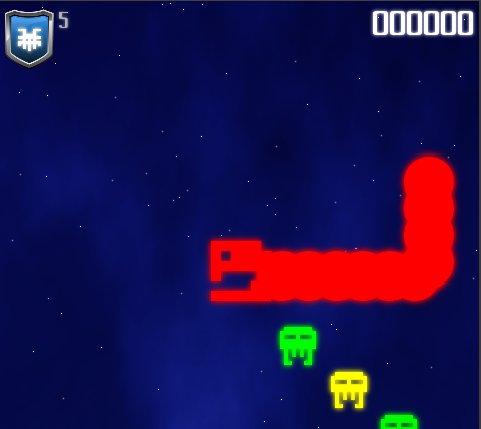

Snake boss

Allocate time for music

I spent rest of the day browsing for some free music. There are many sites, but listening to hundreds of tracks is really not fun. Most of the free stuff out there is junk. I found links to various sites recommended on /r/gamedev on Reddit and also in gamedev.stackexhange.com site and some indie sites. Except for Jamendo which is expensive, most of the free stuff is really bad.

I usually compose my own music, using MilkyTracker or some other tracker program. I got this habit from Amiga 500 and I feel at home when making .it or .s3m modules. But this time I decided I do not have time for that. It usually takes me about 3-4 weeks to create a decent track. I though about re-using some of my old tracks, but I already have used all of them in previous games - and none would really fit to be honest. I did find some good tunes by Kevin MacLeod, so I'm going to use those.

It looks like it really comes down to your own estimation. Whether you spend hours listening to different free tunes or you focus and make your own.

Feedback & Share Milan Babuškov, 2013-10-13

Day 13: Shields, new Boss

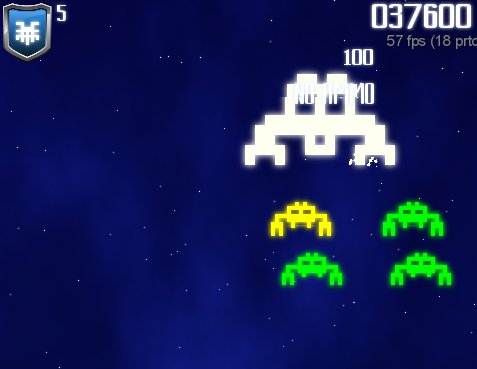

I added a new boss and now I have two of them. Here are the alien names so far: Worker, Eater, Hairy, Glider. Bosses are called Worker Boss (it looks like big Worker and spits small Workers) and Borg (it's cube-shaped and destructs into big cubes).

Second level boss

I also added the shield. I have drawn this nice shield icon before. I drew it using Inkscape and got inspiration from a some YT tutorial. I tried to follow the tutorial (it was for Adobe Illustrator, not Inkscape), but failed. So I started to observe some shields that I like and noted how it's just a bunch or curves and gradients. I slapped Hairy on it, it looks really nice. This might even become the application icon for Android.

Anyway, the shield can be invoked at any time. It lasts 20 seconds. There will be some powerups to upgrade the shield to last longer. If aliens hit the shield it loses energy much faster, so you should still try to shoot them down even if shields are up.

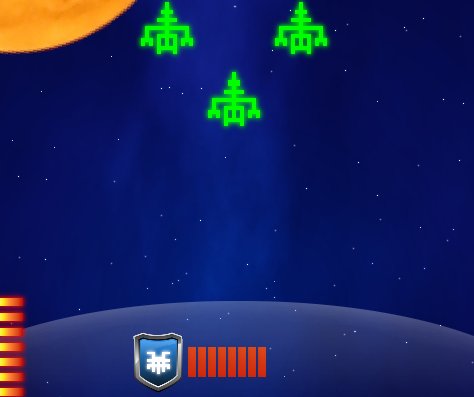

Raised shields

Shield graphics looks like force-field. It required some manual messing with Gimp to draw it nice as I wanted a nice circle-segment instead of straight line and casting a gradient shadow that way doesn't seem to be supported. Maybe there's some trick I don't know. So I combined multiple linear gradients at a different angle. It turned out really nice.

I tried adding some glow to the shield icon, but then it stands out too much. I'll leave the glowing for situation when powerup flies across the screen and you need to pick it up.

With these new graphics, it starting to look like a complete game. I'm still thinking where to place the score multiplier and whether the current wave should be shown.

I'm also thinking that player should be able to buy some powerups before playing, but this would require some coins or something like that, and with current, fast gameplay it simply would not fit. Maybe a some aliens could leave some crystals behind them or something like that or random powerups would show up. Or you would simply get as much coins as the number of waves you survived.

Feedback & Share Milan Babuškov, 2013-10-12

Day 12: Introducing DRONE INVADERS

I finally decided on the name. There were many game names out there, but I only found 6-7 available. This one seems to fit the game theme the best. New title screen is ready, using the same Ruslan font.

Drone Invader title

Today I learned difference between Comparable and Comparator in Java. I changed the bullet code, so that you can fire multiple bullets (laser fragments) at the same time. Also, you don't need to touch the alien to shoot it, but rather just fire in its direction and bullet hits it. Instead of going with full collision detection, I simply extrapolate bullet trajectory at the moment of firing and see which alien it hits first. This worked fine for all levels until the Boss level. Since Boss spits other aliens, he gets to be the first in array and bullet would fly through all the aliens and hit the boss. I left this behavior if you touch the boss directly. But, when you just shoot in some direction I'm sorting the aliens by y-coordinate to shoot the nearest one.

This new feature changes gameplay a bit. It's now easier to play, and more enjoyable as aliens you shoot are no longer obscured by your finger. The game has turned from "precise touches" to "shooting fest" and only that 10-bullet clip prevents you from destroying everything in two seconds.

I guess I'll now have to make alien movement even more challenging, so that the game doesn't get too easy.

Day 12: Part 2

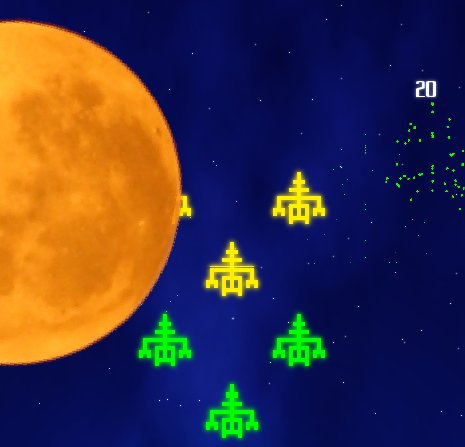

Aliens hiding behind a moon

I started to like the game too much, and decided to work on it more before going to sleep. On levels 16, 26,... I added a big moon, and aliens are hiding behind it. The moon slowly moves across the screen, just in time to finish before the Boss level. This makes the gameplay really challenging. It was also challenging to do detection whether aliens are hidden behind the moon or not. Since moon is round, rectangles are not very easy to use. I looked into pixel-precise detection, but I'm afraid it would slow the game to look individual pixels each time a shot is fired - especially since moon is rotating all the time. So I just reduced the original sprite rectangle by some 12% and I'm doing the rectangular checks instead. It is not pixel-precise, but it works really well. The way it works, bullets fly over the moon and aliens fly under the moon, so you can shoot those who haven't reached the cover yet.

I'm really satisfied with the gameplay now. It's fun, challenging and engaging. Now I need more bosses, a couple of more alien types and powerups. Without powerups it's a real challenge to reach wave 60, so I'll try to create enough content to have new stuff show up at least until level 100 without repeating bosses. I guess it will be easier with powerups. We'll see once I add those.

This is the first time I'm feeling it's going to be a great game, rising above the average space shooter.

Feedback & Share Milan Babuškov, 2013-10-11

Day 11: More alien types and attack formations. First boss level

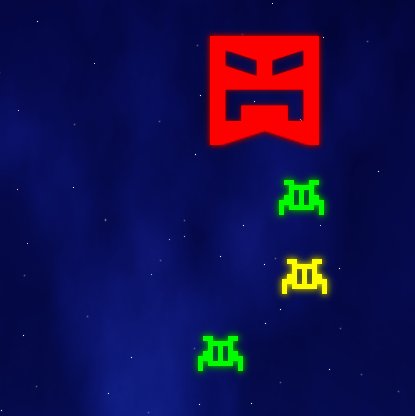

The first boss is on level 10. It's big and cube-shaped. I'm calling it Borg, although it does not assimilate you ;) It emits regular aliens. You have to hit the boss multiple times to destroy it. I set energy to 20 for the first one, it's challenging but not really hard. I added a big shake when boss is destroyed. Boss is made out of 10x10 pixel blocks, so explosion looks nice.

Borg boss in Drone Invaders game

I also added a new snake like formation, aliens move down, then left/right and then down again, repeating it until they reach bottom. I made them a little bit faster in this formation, so it's challenging.

I have also drawn some nice aliens, and named all of them, as each type is represented by a Java class and I needed nice class names. Here they are: Hairy, Glider, Worker and Eater.

Here's a .jar file I made today, you can run in on Windows or Linux or Mac, as long as you have Java installed. On Linux I use: java -jar stardust.jar

Please note that you need to allow game's window to be at least 800px high, for it to work properly. I'm running it on my 1680x1050 desktop and it works fine, but on 1280x800 laptop the taskbar uses some space, so window size is reduced vertically and I need to click underneath the alien to shoot it. I guess I'll need to fix this if I even decide to release the PC version.

Feedback & Share Milan Babuškov, 2013-10-10

Day 10: Making it more fun to play

I'm having doubts whether the current concept is fun enough to play longer. Maybe it would be better if aliens would move left and right as well. I implemented that now for two new attack formations and it looks and feels much better. I also added the camera shake code when you hit an alien and it explodes. The game feels more alive now. The reload button works, so now you can empty your 10-bullet clip and have to reload. Makes the gameplay more interesting as you have to break from shooting spree to reload the gun. I replaced the ugly magenta color of some aliens with cold, whiteish blue. It looks much better.

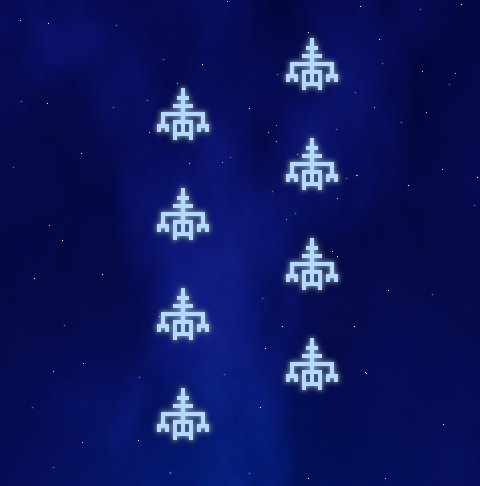

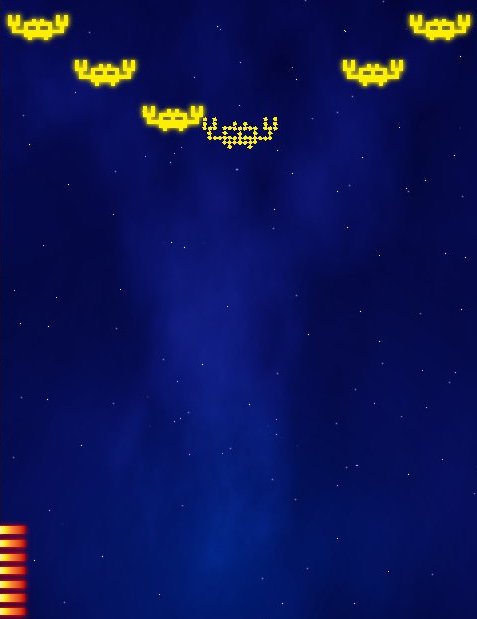

Incoming wave of aliens

I'm thinking maybe it would be better if player could only touch the lower part of the screen - area within his shield. This way the upper part would always be visible - not hidden underneath player's finger as it happens often now. Maybe if shield is half screen size at start and as enemies hit it, it reduces until the gun is naked and vunerable. Although, this would mean having to draw a gun as well. Probably not a bad idea though, I might try this.

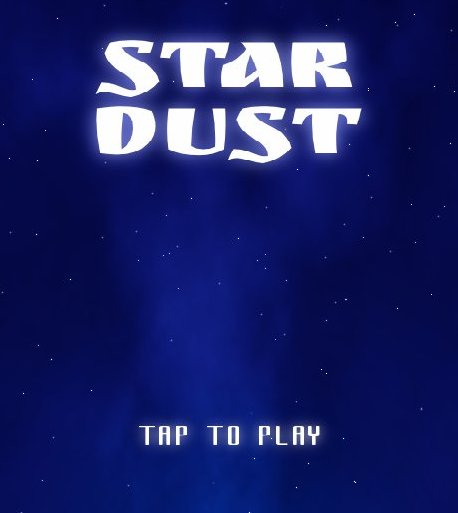

Star Dust name is taken, I tried some 20+ others, but it seems that it's really hard to find a free name, as there are many space-theme games.

Feedback & Share Milan Babuškov, 2013-10-09

Day 9: It's a shooter, and it has first person perspective. Yet, it is not a darn FPS.

Looks like I'll have a hard time classifing this game when I talk to people. I could say it's a "retro arcade". Although, it differs from retro arcades where you move your ship around and it fires bullets straight. Here your position is static, and gun fires wherever you tell it to. Come to think of it, I've never seen a game that plays exacly like this, so don't try to classify it in some existing genre. The closest I got was "it's like Space Invaders, but without a ship". This got people completely confused.

Today I reworked the alien spawning code. I also redraw all the aliens in white color, so that I can change color at runtime using the same sprite. In case you didn't notice, aliens are single-color. I'm thinking to leave it this way, except for bosses. Maybe just add some glow animation or something like that. Who knows, maybe some artist will see a potential this game has and create some cool graphics. Feel free to contact me about this.

I'm thinking there could be an event in the game when enemies would "upgrade" to better graphics. Accompanied with a message "Aliens have evolved", which would bring in some metallic look and feel, for example.

Explosion code is also unified, so now I just supply a 2D array of "pixels" and enemies get blown to pieces. This has been working for some time, but now I got that code clean and universally usable for any kind of alien. Except maybe bosses, which might fall apart in stages. I still need to ponder on that one.

Anyway, if you're interested in playing, here's an .apk file of what I've done so far. Features are obviously missing, but you can see what I'm up to.

Feedback & Share Milan Babuškov, 2013-10-08

Day 8: Star Dust

I'm looking for a new title for the game. Got one, but need to research more to see if it's available: STAR DUST. I tried some fonts and I think I'll use the one called Ruslan Display.

Star Dust title

I polished the algorithm for alien explosions today. I'm also thinking how will the enemy waves look like. There would be 10 waves of enemies, and then a boss and after that the game would speed up a little bit and some new enemies would be introduced. At each tenth level (10,20,30...) there would be a new, unique boss. This algorithm would repeat until player dies. The speed would be capped at 2x starting speed as it seems to me that takes a lot of effort to play if you want to destroy all aliens.

And then, there will be powerups. Here are current ideas:

Time limited, collectible during game:

  • shield (sits at bottom of the screen, protects against one alien going through)
  • score multiplier boost (x2)
  • rapid fire (just hold your finger down and move around)
  • mega bomb (destroy all aliens on screen)
  • hyperdrive (skip 10 waves of enemies, but gain points as if you destroyed them)
  • gallactic ninja (cut enemies with a jedi sword - fruit ninja style)
  • auto reload (auto reload lasers)
  • spread fire (fire 3 or 4 lasers at the same time)
  • extra life (start game with 4 lives)

Permanent, can be upgraded between plays:

  • rapid fire duration
  • shield duration
  • galactic ninja duration
  • auto reload duration
Feedback & Share Milan Babuškov, 2013-10-07

Day 7: Change of layout and screen orientation

You can shoot aliens now. Since the graphics is retro style, I decided to explode the alien's large pixels (I draw aliens using large zoom tool in Gimp, and then I enlarge the image 5x without any interpolation). I wrote a custom particle manager code and use built in tweening in libGDX to send each piece in a random direction away from center.

Particle effects libGDX and Android

You may notice that there is no you on the screen. This is on purpose. In case you did not realize yet, this is a first person shooter. ROFL. Well, at least technically, it is. You don't get to see yourself, you only shoot at enemies. In some test version I also tried to scale the aliens to give a feeling of depth and them coming from far away, but it's hard to shoot small sprites on Android using your finger, so I gave up on the idea.

To make the game more interesting, the laser gun you're using would need reloading. You got 10 shots and then you need to hit the Reload button at lower left corner of the screen. I'm still not sure about this feature - needs testing.

As I was testing this, one thing bothered me a lot: While I shoot the aliens, my index finger is all over the screen and it's hard to see what's going on. Then I looked at different Android games on my phone and realized that it would be much better if screen was oriented in portrait mode. When in portrait mode, your index finger does not come from below, but from right side (if you're right-handed, of course). Most of the screen is still visible in this case. I'm also changing the flying direction. Instead of going from left to right, aliens are coming from the top of the screen.

Because of this, I'm also changing the main game concept. Instead of playing a fixed amount of time, you would play until you allow one of the aliens to get past you. My initial idea was that you would play for one minute and score as many points possible during that time (something like fruit ninja arcade mode). But now I'm thinking you could have 3 lives or something like that, and if you let some aliens pass, it's game over.

I also changed the nebulas in the background. I wrote before about that tutorial how to draw a night sky with stars and nebulas in Gimp, but I had to experiment a bit to get the look I wanted. It works by using Subtract layer effect on two layers with rendered Solid Noise, and then colored using Overlay with a single color and a gradient. The problem is that Subtracting those two layers always created a "small" nebula, while I wanted the whole screen to be full with color. I draw the stars by placing a bunch of random dots using pencil and a couple of different colors. I separated the stars in 3 layers. On one of the layers I added a 2px drop shadow (with no offset), on second one I used blur and I left the third one as it is. The trick to nice stars is that those drawn close to each other should always be different color or have different sharpness. This is the way it is on the real sky. The stars that look close together are lightyears away and only appear close from Earth.

Feedback & Share Milan Babuškov, 2013-10-06

Day 6: First aliens and screen orientation

OK, I got some really retro aliens, and they are flying around. Sorry for no demo, it's an Android game, all I got is .apk and you probably wouldn't want to install .apk from a complete stranger. Basically, the background loads, and stars load, and stars slowly move. To scroll the stars I'm using setV() and setV2() on the stars texture, slowly increasing the timer. Like this:

    scrollTimer -= delta*0.014;
    if (scrollTimer < 0.0f)
        scrollTimer = 1.0f;
    sStars.setV(scrollTimer);
    sStars.setV2(scrollTimer+1);

And then some aliens show up and they move to the right. That's about all that works now. I'm still learning libGDX, so a lot of time goes into googling and reading tutorials or watching videos.

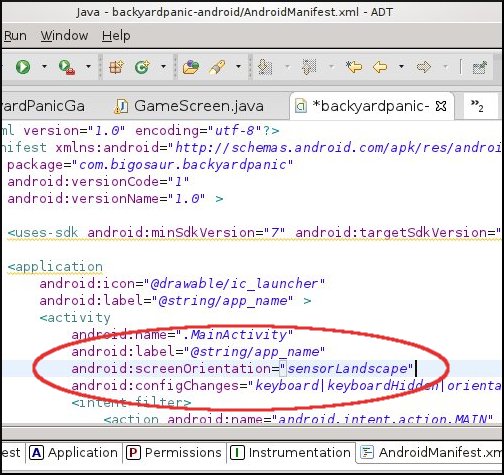

Helpful tip: I noticed that some games built with libGDX have fixed screen orientation. If you flip the device, the game shows upside-down. I found a very simple solution to this in some obscure comment in some SO thread. Just replace landscape with sensorLandscape in AndroidManifest.xml and device flips the screen automatically.

Setting up Eclipse for libGDX and Android

Feedback & Share Milan Babuškov, 2013-10-05

Day 5: libGDX and graphics ideas

I selected the library I'm going to use. It's Java, and it seems pretty complete. I managed to build and tweak a test application very quickly. I'm still confused whether to use Scenes, Actors, and all the other features or build the stuff myself as I'm used to. The docs are lacking examples and explanation how to tie in some stuff, I guess I'll have to google a lot. For example, there is no explanation how should you wire up the Actor and Sprite. And what if you have like 20 sprites with same graphics and stuff like that.

For this first project, I guess I'll learn just enough to manipulate Sprites and then build the rest myself using my previous experience. For some future project I'll probably be smarter and figure out which stuff did I build that was already there. I just hate learning so much up front and then figuring that framework/library is not flexible enough for some out-of-the-box ideas I might have in the future.

Here are some of my ideas for retro-graphic aliens. Most of the time I first draw stuff on paper. Maybe it's just a habit, but it helps me concentrate when I'm away from keyboard and monitor:

Retro graphic aliens drawing

Feedback & Share Milan Babuškov, 2013-10-04

Day 4: A Twist

I have been trying to draw some docking bay graphics and it looks like s***. So, I'm diching the "docking bay" idea. The combat will happen in space. Yep, that's it. Aliens would come from one side of the screen, and you would shoot them before they leave it on the other end. At the bottom there will be some destrucable stuff. Aliens could hide behind that, and maybe you can shoot it down or make holes in it by shooting. Here's an example with a tower, satellite dish and some other things:

Nebulas, stars, aliens, tower, satellite dish

The idea is that you have limited time (say, one minute) to shoot down as many aliens as you can.

Since the game will have a space theme, I'm browsing my font collection, to find some cool gallactic font. So far, ArdourGM looks like the one I'll use for in-game text like points, option screens, etc.

The graphics above are created using Gimp, and insipred by this nebula tutorial. After reading that and doing some my own tweaks I was able to draw the above picture in a couple of hours. I hate when I lose that much time on a single thing, but this background would be used for most of the game.

Feedback & Share Milan Babuškov, 2013-10-03

Day 3: A new game idea

Looking around the net for ideas, and browsing Android forums, I found an ad for Revenge of the Titans. Cool game with retro graphics and nice animation. I can do retro graphics. So, instead of monsters, aliens would descent from space into your backyard... well...

No! Backyard does not seem like a good idea. I guess I'll need a new game name as well. I have two ideas here:

  1. Aliens attack a remote defensive station on the border. They disable the automatted system, so you have to manually override the controls and shoot them. The game would be called MANUAL OVERRIDE or EMERGENCY OVERRIDE. I looked up on Google Play and Internet, it seems these names are free to be used.
  2. Aliens land on a docking bay of a large spaceship and you have to keep them away. They could hide behing some barrels, landed spacecraft, etc. I'd like to have some stuff in the game beside enemies that is destructable. The game would be called DOCKING BAY or DECK 42, or something like that.

Not very exciting titles? Oh, well.

Feedback & Share Milan Babuškov, 2013-10-02

Day 2: Eclipse setup and choosing a game library

I downloaded Android bundle and set up my Linux machine with Eclipse. I was able to run Hello World on my Galaxy S2. Hello Java. I really have to remember all the Java stuff as I haven't used it since 2002 or something like that.

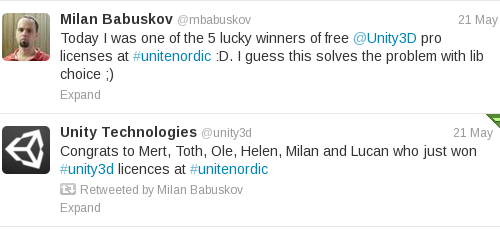

Free Unity license

Looking at all the 2D/3D OpenGL stuff, it looks like it would be a good idea to use some toolkit/library to build the game. I got some free licenses for Unity3D at NordicGame 2013, but those do not include rights to release on Google Play, so I guess I'll skip Unity for now. I'm now looking into CoronaSDK and some other libraries.

Feedback & Share Milan Babuškov, 2013-10-01

Day 1: Backyard Panic

Looking at some websites with animation stuff, I found some nice, freeware, zombie animations. They have even animations for zombie being shot, crawling, etc. So, maybe this game could be a zombie shooter.

Your character would sit on his/her porch and shoot the zombies coming out of the cornfield. The game would be called Backyard Panic. You could switch different characters from the old granny, redneck with a shotgun, to a member of the Marines with some long-range rifle. Here's a really, really rough sketch:

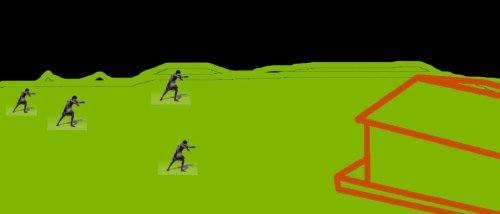

Zombies coming out from the cornfield

Update: I just played Zombie in USA. Interesting game, but gets a little bit boring to tap the device like crazy. I want a single touch equals kill type of interaction, at least for non-boss enemies. As I think about it more, the whole zombie topic seems too gloomy for me, and having yet another zombie game is hardly called fresh. So, I'm not sure about this. Also, it seems it would involve 3D graphics, and I'd like to stick with 2D, at least for my first Android game.

Stay tuned. I plan to post my progress each day.

Feedback & Share Milan Babuškov, 2013-09-30

Creating a complete Android game from scratch in one month

My inspiration I wanted to build an Android game for some time, but never got some good idea. Lately I have been playing Subway Surfers and got really passionate about it. I usually don't like the "endless" games, that you basically cannot finish, so I always set an arbitrary goal to reach. This time it was reaching 30x score multiplier. While I did that, I got some skill and really got addicted to the game. It also made me realize that Android games don't have to be a AAA title with huge story and complex gameplay. Something simple and casual is OK.

Anyway, I thought it would be nice to have a game where you could simply point your finger at something and shoot it. With a system of Missions, Daily and Weekly Challenges and weapon upgrades it could be fun. My first idea was to create a game where some cute monsters would run around a beautyful scenery, hide behind the trees, old houses, or even in the clouds and you would need to shoot as many as you can. By cute monsters, I mean something like Gremlins. They would also bring in some huge machines and do other stupid things that would make you laugh. Of course, being an indie game developer with zero budget, I decided this would require too much art and too much of my time because of complex animation I envisioned. So I decided to use a different setup, something I can produce myself in a reasonable timeframe.

My goal now is to make an interesting, playable game for Android in one month.

Feedback & Share Milan Babuškov, 2013-09-29

Hello Gamers and Gamedevs

This is the place where you can read about games that I released so far as well the progress on the new games. I recently released a battle card strategy Gods of Sparta and now I plan to try to make my first Android game.

Update: I never managed to start this, but Ludum Dare October Challenge is here, and this is enough to finally get me going. Initially, this was supposed to be a Create Android game in 21 days challenge for me, but I got some more time because Ludum Dare ends by November 1st.

Feedback & Share Milan Babuškov, 2013-09-12
Bigosaur.com Website Home Page Blog main page Twitter account
